Installed Speakers

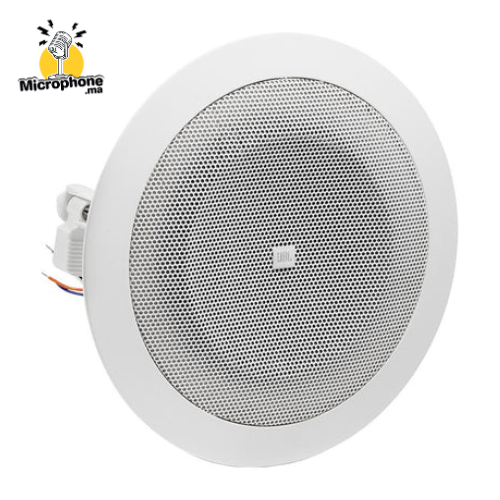

8124 In-Ceiling Loudspeaker – JBL PRO
Availability:
42 en stock
General Specifications
- Component
- 4 in (100 mm), full-range driver
- Frequency Range
- 60 Hz – 18 kHz
- Sensitivity
- 93 dB (1 kHz – 8 kHz), 1W, 1M
- Coverage
- 130° conical
- 70V/100V Taps
- 6W, 3W, 1.5W (0.75W at 70V only)
- Termination
- Bare wires
- Nominal Driver Impedance
- 8 ohms
- Driver Power Capacity
- 20 W
- Plenum Usage
- Not intended for use in return air plenums
- Included Accessories
- Sculpted Grille
- Optional Accessories
- MTC-8124C C-ring, MTC- Rail tile rails
Dimensions
- Diameter
- 8.1 in (206 mm)
- Depth
- 3.5 in (89 mm)
- Weight
- 2.5 lb (1.2 kg)
- Cutout Dimension
- 175 mm diameter (6.9 in)
499,00 د.م. 1.000,00 د.م.
42 en stock
Key Features
4-inch, Full-range, In-Ceiling Loudspeaker
The 8124 is a 4-inch, full-range, cost-effective loudspeaker for commercial applications. The 8124 features high-fidelity performance in an easy to install package. The systems high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.Features
Clear, High-Fidelity Performance
Dog-ears for easy Blind Mount Installations
High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency
6W Transformer for use of 70V / 100V Distributed Lines
The 8124 is a 4-inch, full-range, cost-effective loudspeaker for commercial applications. The 8124 features high-fidelity performance in an easy to install package. The systems high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.Features
Clear, High-Fidelity Performance
Dog-ears for easy Blind Mount Installations
High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency
6W Transformer for use of 70V / 100V Distributed Lines
Produits similaires
-
Installed Speakers

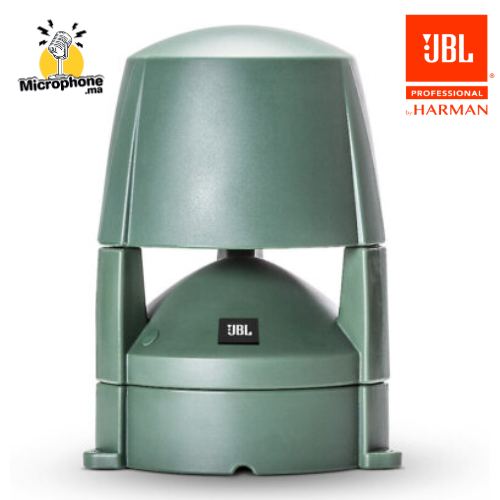

Enceintes ext̩rieures control 89ms РJBL PRO
