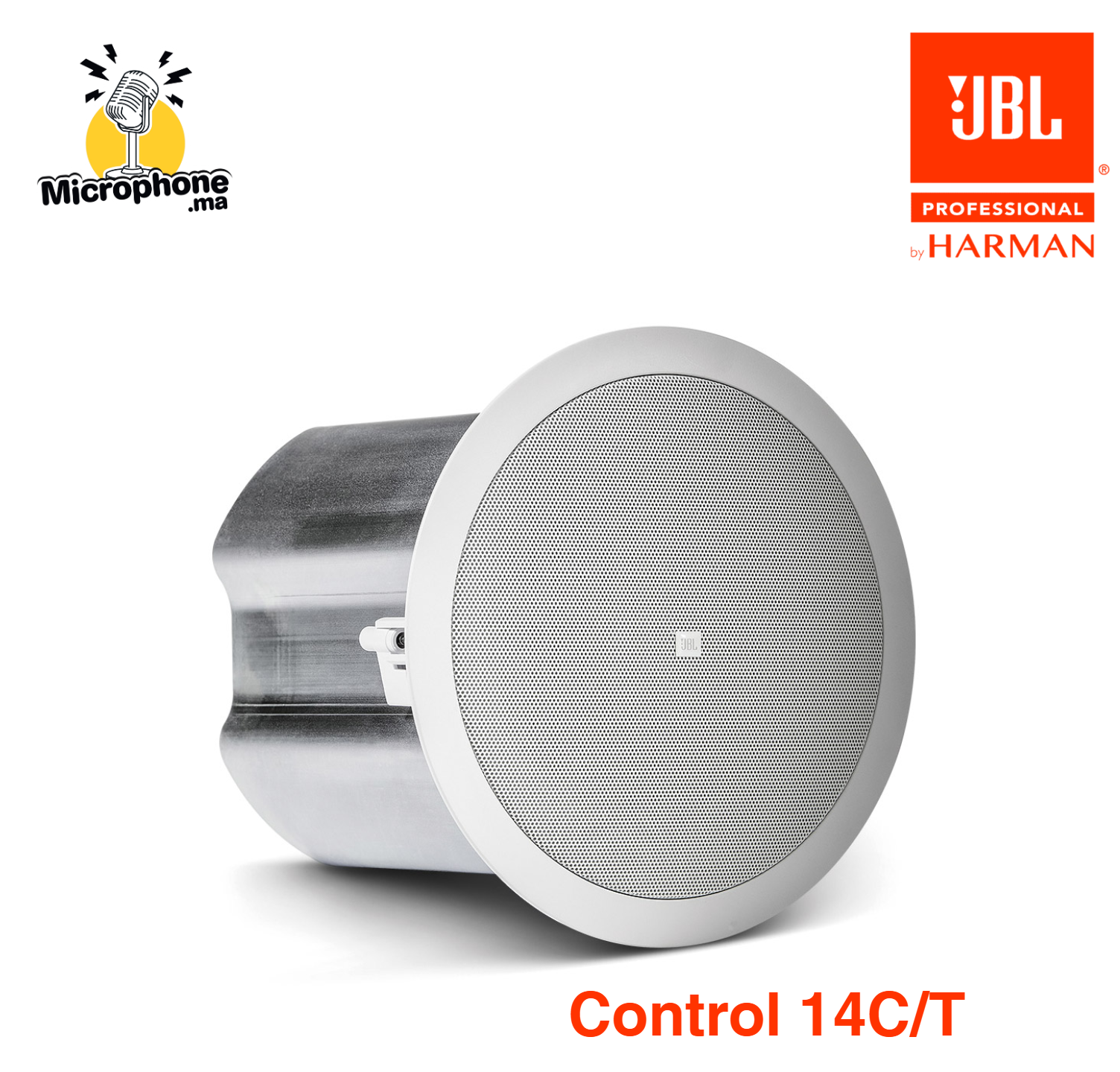

Control 14C/T Two-Way 4″ Coaxial Ceiling Loudspeaker

General Specifications

Frequency Range (-10dB)

40 Hz – 150 Hz

Frequency Response (+/-3 dB)

53 Hz – 110 Hz

Power Rating

300 W – Continuous Program (2 hrs) ; 150 W – (600 W Peak), Continuous Pink Noise (2 hrs) ; 100 W – (400 W Peak), Continuous Pink Noise (100 hrs)

Sensitivity

87 dB (ave. 60 Hz – 105 Hz)

Maximum SPL

115 dB peak (109 dB continuous, 2 hr) @ 1m

Nominal Coverage

360° horizontal, 160° vertical (primary listening 10° to 50° up from ground)

Directivity Factor (Q)

2.0 (with half-space, 2π, on-ground loading)

Directivity Index (DI)

3.0

Nominal Impedance

8 Ω (at 8Ω tap)

Transformer Taps

70V = 80 W, 40 W, 20 W, 10 W ; 100V = 80 W, 40 W, 20 W

Dimensions

Height

524 mm (20.7 in)

Width

355 mm (14.0 in)

Depth

355 mm (14.0 in)

Net Weight

10.9 kg (24.0 lbs)

Shipping Weight

13.6 kg (30.0 lbs)
