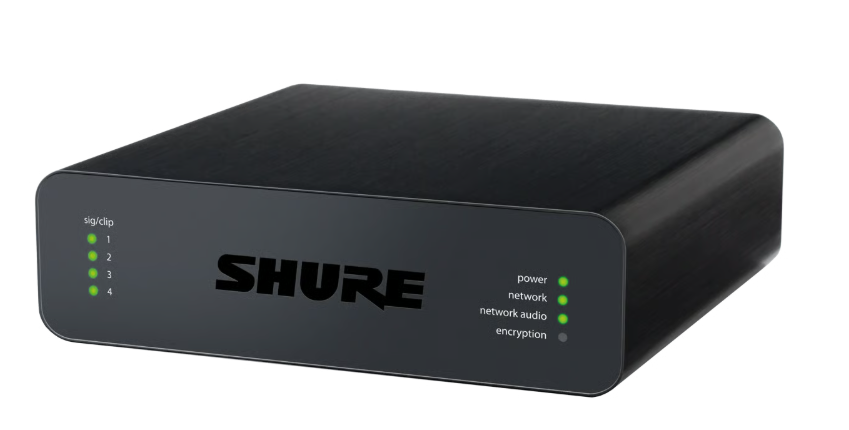

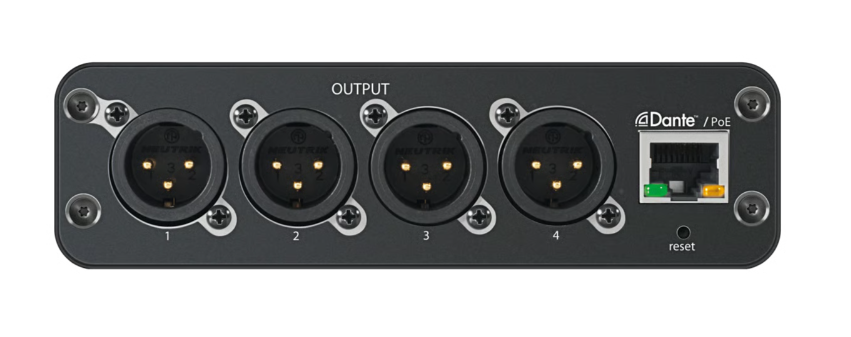

4CH MIC/LINE OUT-DNTE,1/3RU,XLR ANI4OUT-XLR
- Single Ethernet port carries Dante audio, power (PoE – class 0)
- LEDs indicate device status and audio signal
- Control strings for third-party preset controllers including Crestron® and AMX®
- 4 Band C/S PEQ on every channel
- Provides channel summing to combine Dante™ signals from the network and send them over a single analog output
- Browser-based software control for all device parameters, per output channel:
- Mute control
- Digital gain
- Polarity control
- 1/3 Rack unit wide
- Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
- Available in block connector and standard XLR variations
Converts Dante™ digital audio signal to four discrete line / mic analog signals.
12.700,00 د.م.
Produits similaires
-
DSP, Mixers & Network Interfaces
4CH IN/2CH OUT USB MATRIX MIX,DNTE,BLOCK ANIUSB-MATRIX
- Connects 4 Dante audio inputs and 1 analog input to an A / V conferencing system or a PC-based videoconferencing application
- Flexible signal routing and connectivity: analog audio (1 block in / 1 block out) to room A / V conferencing system; USB (1 in / out) to connect to laptop or room PC
- Power-over-Ethernet (PoE) eliminates the need for an outboard power supply
- Compact form factor is easy to mount without equipment rack
The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A / V conferencing codec will be used.
The ANIUSB-MATRIX connects 4 Microflex® Advance™ or Microflex® Wireless microphone channels via Dante (4 in / 2 out), and provides analog connectivity (1 block in / 1 block out) to a room audio / video conferencing system or a PC-based A / V conferencing application via USB (1 in / out).
An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.
The ANIUSB-MATRIX supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
SKU: n/a -
DSP, Mixers & Network Interfaces
2 CH IN/2 CH OUT – DANTE, 1/3 RU, XLR ANI22-XLR
- Converts up to 2 mic/line analog signals onto a Dante Network
- Converts up to 2 Dante digital audio signals to line/mic analog signals, ANI22BLOCK: Analog audio block connectors (2 in, 2 out); ANI22XLR: Analog audio XLR connectors (2 in, 2 out)
- Power-over-Ethernet (PoE) eliminates need for outboard power supply
- Compact form factor is easy to mount without equipment rack
More flexibility for every kind of application where it is required to get analog audio onto and from a Dante network: The ANI22 Audio Network Interface complements the existing ANI4IN and ANI4OUT products, and is available with XLR and block connectors. It brings up to two line / mic signals onto or from a Dante network for easy audio routing and convenient browser-based remote control.
SKU: n/a -
DSP, Mixers & Network Interfaces
NOTEPAD-5 Console de mixage analogique
Specifications
Input (Mic) – Mic/Line Combo Inputs 1 Input (Mic) – Gain 1 Input (Mic) – Inputs with Hi-Z 1 Input (Mic) – Peak Light 1 Input (Mic) – EQ High 1 Input (Mic) – EQ Mid n/a Input (Mic) – EQ Low 1 Input (Mic) – Pan n/a Input (Mic) – Level 1 Input (Line) – 1/4″ Stereo Line Inputs w/Trim 1 Input (Line) – RCA Stereo Line Inputs 1 Input (Line) – 1/4″ Stereo Line External FX Return n/a Input (Line) – Aux/FX n/a Input (Line) – Balance n/a Input (USB) – USB Return 2, summed with RCA, to channel 4/5 Output – Master Stereo Out 1 Output – Monitor Stereo Out 1 Output – Aux Out n/a Lexicon Processing – Reverb/Chorus/Delay n/a Lexicon Processing – Tap Tempo n/a Output Control – Master Level Fader 1 Output Control – Monitor/Phones Level 1 Output Control – Output Meters 4x LED SKU: n/a -
DSP, Mixers & Network Interfaces
ZonePRO 640m – 6×4 Digital Zone Processor
Features
- 6 Inputs / 4 Outputs
- 4 Balanced Mic/Line Inputs
- 2 Unbalanced, Mono-Summed RCA Input Pairs
- Microphone Gain per Channel
- Pre-Configured Architecture
- Two Configurable Input Insert Positions
- One Configurable Output Insert Position
- AutoWarmth® per Output Zone
- Link Bus
- Comprehensive Signal Metering
- Front Panel LCD
- User-Specified Front Panel Control
- Optional ZC Controllers
- Ethernet Control
- Serial Control
- Third Party Control
- Wizard-Driven Configuration
SKU: n/a -
DSP, Mixers & Network Interfaces
4CH MIC/LINE IN-DNTE+LGC,1/3RU,BLOCK ANI4IN-BLOCK
Powerful audio conversion for any system design
- Single Ethernet port carries Dante audio, power (PoE – class 0)
- LEDs indicate device status and audio signal
- Control strings for third-party preset controllers including Crestron® and AMX®
- 4 Band C/S PEQ on every channel
- Provides channel summing to combine input signals and send them over a single Dante™ channel
- Browser-based software control for all device parameters, per input channel:
- Preamp gain
- Mute control
- Digital gain
- Polarity control
- Phantom power
- 1/3 Rack unit wide
- Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
- Available in block connector (audio + logic) and standard XLR variations
Converts up to four line / mic analog signals onto a Dante network for easy audio routing and browser-based control.
View the ANI4IN-XLR and ANI4IN-BLOCK Software GUI Demos.
SKU: n/a
